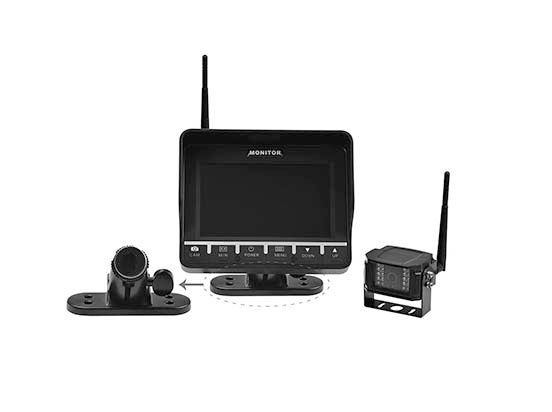

m-use wireless set 5" monitor/bracket + uni AHD cam 12v/24v

* Let op set foto wijjkt af van daadwerkelijk model. Zie aanvullende foto's voor levering producten

5" digital signal wireless camera system with 2 channel inputs. The system has built-in transmitter and receiver. It is without delay and interference. After being paired for the first time, the wireless monitor and wireless camera start to function simply by connecting them to power supply of the vehicle, which save labor cost and efficiency.

Monitor Specification

.Screen size

 5.6’ TFT panel

.Aspect Ratio

 4:3 image

. Input

 1-channelvideo input

.System

 PAL and NTSC auto switching

.Resolution

 800 x R.G.B x 480

.Brightness

 200cd/m2

. Power supply

 12-24V DC

.Operation Temperature

 -30℃~+70℃.RH95% Max

Camera Specifications

Image Sensor

1/3 CMOS

TV System

NTSC/PAL

Vibration Rate

 10G

Min IIIumination

0.1Lux@(F1.2,AGC ON);0Lux With IR

Electronic Shutter

Auto PAL 1/50s(NTSC 1/60s)~1/100,000s

Signal to Noise ratio Better than 48dB

Focus 2.8mm

F.O.V   120° (D)、95°（H）、70°（V）

BacklightCompensation Auto

Resolution 700TVL

Ir LED 20pcs

Power Supply DC+12~+24V

Operating Temperature -30℃~80℃

IP Rating IP69
